This Battery is one of the best Lithium Batteries currently available for Solar off grid and hybrid systems.
It’s LifePO4
It’s White all Metal Box
has rack mount handles
Comes with a Wall mount bracket
Comes with Power Cables
Uses standard 2 gauge Anderson connectors.
Comes with USB computer link cable
Comes with RJ45 BMS cable
Has Smart Cell balancing
Smart charge and bms built into unit.
It is 48V
200AH capacity
It has a 5 year warranty
10 year lifespan
6000 Cycles
Charge Voltage: 54-54.8
voltage Range: 40.5 – 54.8
100A charge/discharge current continuous
Built in Battery Controller
Parallel up to 20 units
Extremely long service life best in the business.
Working Temperature Range: -7F – 140F
6000 cycles is calculated for 80% Dept of Discharge @ 70F
This battery will last longer than 6000 cycles but will degrade after 6000 cycles
Passive cooling no need to fan or active cooling systems.
Tier 1 units

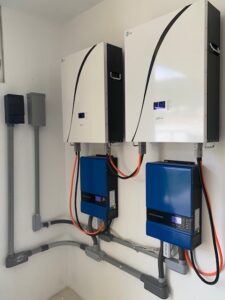

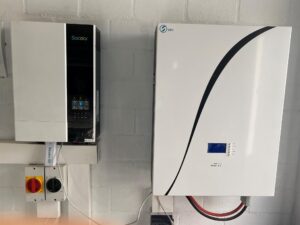

very clean installation
works very well and can interlink with our 3k and 12k growatt off grid inverters.
Weight is 203lbs
Boxed is 236lbs
Dimensions of each battery is
26″ High x 19″ wide x 7″ Thick
These come in cardboard boxes if you buy one
If you buy two they come in a solid wood crate.
