10KWH 48 volt 2023 Solar Lithium Battery Pro Series Outdoor IP65 Rated.

$3,499.00 $2,899.00

The all new Pro Series 2023 10kwh Lithium Ion Battery

48V

10 year warranty 6000 cycles

Mounts outdoors waterproof

Remote Display capable

67 in stock

Compare
Add to wishlist
Category: Solar Batteries
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Data Sheets
Description

This is the long awaited Outdoor Pro series 10kwh Battery



Manufacturer: Yilink

Model: YL-P48200

Version: 2023 Pro Series

Unit has no logo’s on outside case for a cleaner look

Backwards compatible to our 2022 and 2021 batteries for stacking.

System Voltage: 48vdc

Optional remote Display available can be run up to 75 feet away from battery.

More simple installation, Wall mount and smooth powder coated heavy gauge steel case.

includes wall mount bracket and hardware

dimensions of battery (when mounted) : 31.4″ H x 20.4″W x 9″L (including bracket 10.25″L)

Conduit hole dimension is for 1.5″ conduit

Breathing valve built in to depressurize the case when it heats up.

Designed for outdoor wall mount -4F to 140F   (full charge temperature is) 32F to 130F

Weight is 90kg with bracket

BMS current continuous current rating : 100A

Capacity 200AH minimum

15 Cell Prismatic Design all welded no soldered connections to batteries

Single BMS board design for easy repairs if needed.

10 Year warranty

6000 Cycle life

54V @ 200ah = Peak storage capacity 10,800WH

8 way protection built in

Stackable to 16units

Standard power connection for lugs for easier wiring installation.

Ships in wood crate.



Data Sheets

Data sheet 2023

Download

warranty information

Download

PBMS Tools for solark

Download

PBMS tools software

Download

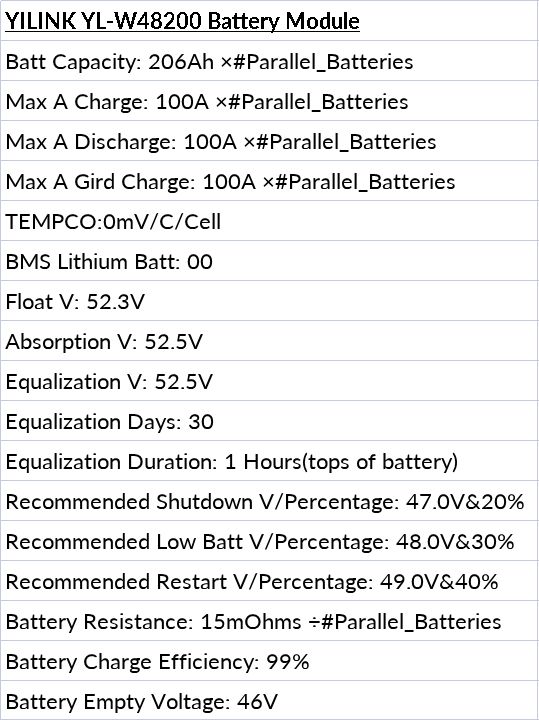

Quick Settings Cheat Sheet

Download

This is a printable image of most common settings for this battery for non BMS communicating inverters such as but not limited to Outback, Schneider, Trace, Xantrex, Growatt, and other non canbus bms inverters.
